45t truck mounted crane hydraulic cylinder lifting height 25m total weight 33t with max.8 extensions

FOB Reference Price:Get Latest Price
$150.00 - $350.00 / Sets | 10 Set/Sets (Min. Order)
Maximum Stroke:
6000mm
Shaft Diameter:
70 mm 45mm
Model Number:
63.562
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Construction works
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Hydraulic
Body Material:
Steel
Place of Origin:
Shandong, China
Brand Name:
FAST
Application:
For combine harvester
Sealing:
Parker&Hallite&ASTON&Other
Certification:
ISO9001/TS16949
Warranty:
13 Months
Material of Tube:
27SiMn/16Mn/C1020
Material of Rod:
C1045 (Hardening and Tempering)
Chrome Plate:
0.03-0.05 mm
Hardness:
HRC20-50
Thickness of Painting:
Min. 50 μm
Supply Ability
Supply Ability:
450000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Standard Export Packags
Port
YANTAI/QINGDAO
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 35 To be negotiated

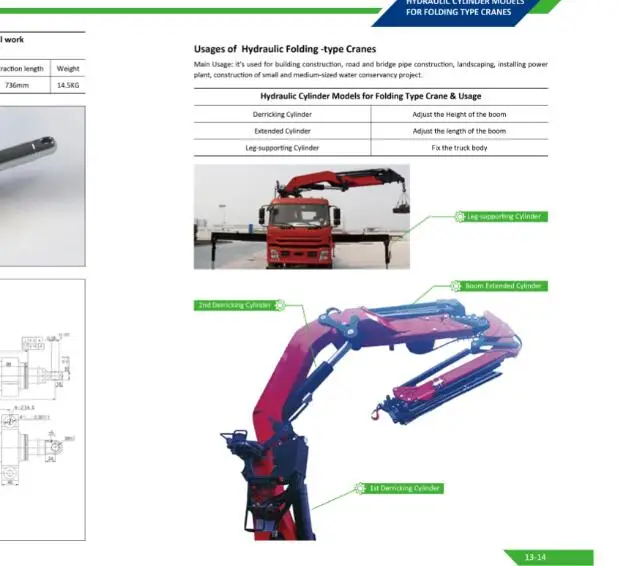

Crane Hydraulic Cylinder

Product Description

Technical Parameter

3.50 ton5.00 ton6.00 ton6.50 ton7.50 ton8.00 ton10.00 ton12.00 ton13.50 ton15.00 ton18.00 ton19.00 ton26.00 ton32.00 ton44.00 ton
Ltem
Unit
References

Max Lifting Moment
t*m
125tm

Max Lifting Capacity
kg
Max.44000

Boom Length
m
4.09~11.2

Max Lifting Height
m
Max.25

Derricking range
°
0~75°



Parameters of the hydraulic cylinder

Boremm

70



Rod



mm45

Stoke



mm2100

Installation



mm2446

Operation Pressure



Mpa36

We also can customize the cylinders according to your drawings and requirement. Please give us more informations.

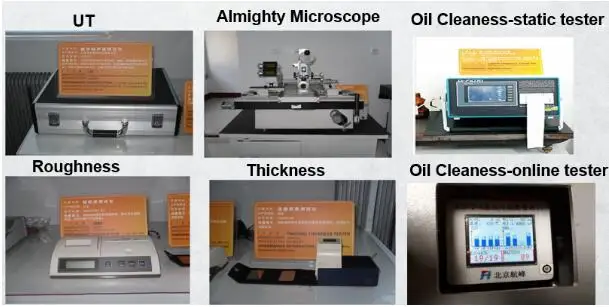

Quality Control

We use Solidworks to design cylinders and do force analysis.

Inspection process: incoming inspection, sampling inspection, process inspection and pre-shipment inspection.

Before the production, we will do chemical composition tests. The uninspected materials are stored in special positions and all inspected materials are able to be traced by size, supplier and date.

During the production, the process cards are placed around to make sure that the workers understand every step clearly. The products are marked for tracking.

Products Application

Our products are mainly used in following industries like car lift, agricultural machines and environmental vehicles. With high quality products and considerate after-sales service, we have established a well-known reputation.



Company Information

Company Introduction

Built in 1973

Total area 456000
400 employees, 70 engineers
More than 400 sets equipment
National Patents: 71

Management System

                      ISO9001                                 ISO/TS16949                               IPR



Our Services

Sales Network

Our products have been exported to North America, Europe, Russia and Southeast Asia, etc. We have established a branch in USA.



FAQ

Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer with Exporting License.



Q2: How long have you been in Hydraulic Cylinder industry?

A2: Our factory is built in year 1973 and start by manufacturing Pneumatic Cylinder. From year 1985, we start manufacturing Hydraulic Cylinder.



Q3: How long is your warranty period?

A3: We offer 13 months warranty period after on board.



Q4: How long does it take to process orders?

A4: It usually takes 20-30 days to process. We don’t have stock.



Q5: What’s your cylinder PPM?

A5: 5000 PPM. We do 100% inspection before delivery.



Q6: Have you been exported to overseas?

A6: We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.
